Unleash the Power of Logic Pro's Channel EQ: A Comprehensive Guide

Greetings, music aficionados!

I'm thrilled to have you here for the second episode of my ongoing series of posts where I teach every single plugin in Logic Pro X. This series is not for the faint-hearted; it's an in-depth exploration of the numerous plugins available in Logic Pro. Last time, we dissected the Sample Delay plugin, and today, we're diving headfirst into the classic Channel EQ. If you find this information valuable, please consider linking the post and sharing it with a friend who uses Logic. Your support helps the blog grow and assists others in discovering these educational resources. Without further ado, let's plunge into the realm of the Channel EQ.

Accessing the Channel EQ:

To unleash the power of Logic Pro's Channel EQ, follow these straightforward steps:

1. Click on the EQ icon.

2. Navigate to Logic EQ.

3. Select Channel EQ, choosing between mono, stereo, or dual mono based on your channel configuration. For this tutorial, we'll predominantly focus on stereo applications.

Channel EQ Essentials:

The Channel EQ, as the name implies, is an equalizer plugin that boasts an impressive eight-band EQ. Unlike some EQ plugins that allow you to switch between bands like shelves and bells, the Channel EQ provides all eight bands simultaneously. This setup provides remarkable flexibility right from the start.

Here's a quick overview of the eight bands at your disposal:

1. Low Cut (High Pass)

2. Low Shelf

3. Four Mid Bands

4. High Shelf

5. High Cut (Low Pass)

Each band is assigned a color, which corresponds to a dot in the user interface. These colors are essential for visually identifying and manipulating the bands' parameters.

Parameters:

Below the color-coded bands, you'll find three core parameters common to each band:

- Frequency: Adjusts the center frequency where the EQ cut or boost is applied.

- Gain: Controls the intensity of the cut or boost.

- Q Factor: Determines the bandwidth or width of the frequency adjustment.

Manipulating Bands:

You can activate or deactivate individual bands by clicking on the top of each band, allowing for quick A/B comparisons. Additionally, you can click and drag directly on the bands in the graphical representation to adjust their settings. Typing in specific frequencies and values is also an option for precise control.

To modify the Q factor while dragging, hold down the Option key while dragging the band. This allows you to fine-tune the width of the band, providing more surgical control over your EQ adjustments. If you ever need to reset a band entirely, simply Option-click it to restore it to its default settings.

Analyzer and Pre/Post Processing:

The analyzer displays the frequency spectrum, allowing you to visualize the audio's characteristics. You can toggle this feature on or off, depending on your preference for visual or auditory mixing.

The Pre/Post button determines whether the analyzer displays the audio before or after EQ processing, providing valuable insights into your audio's transformation.

Q Couple:

The Q Couple option ensures that as you adjust the gain, the Q factor is automatically adapted to maintain consistent frequency width. This feature is particularly useful for precise cuts and boosts. Experiment with Q Couple on and off to find the sound that best suits your project.

Q-Couple ON

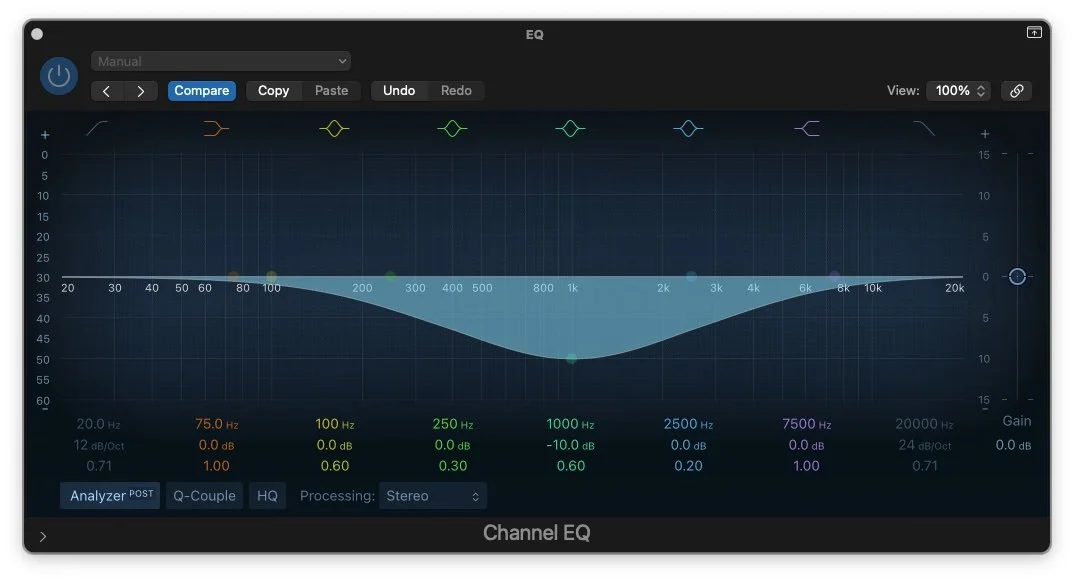

Q-Couple OFF

HQ Button:

The HQ (High Quality) button enables oversampling, which can help maintain smoothness when applying extreme boosts to high frequencies. However, exercise caution with this feature, as it can significantly increase CPU usage. It's often advisable to reach for specialized EQs for extreme boosts instead of overtaxing the Channel EQ.

Processing (Stereo):

For stereo applications, you can choose whether the Channel EQ affects the stereo output collectively, only the left channel, or solely the right channel. This feature comes in handy when you need to target specific frequencies on one side of the stereo image.

Mid-Side Processing:

The Channel EQ also supports mid-side processing, allowing you to independently adjust the mid (center) and side (stereo) components of your audio. This feature is invaluable for sculpting precise tonal balances within your mix.

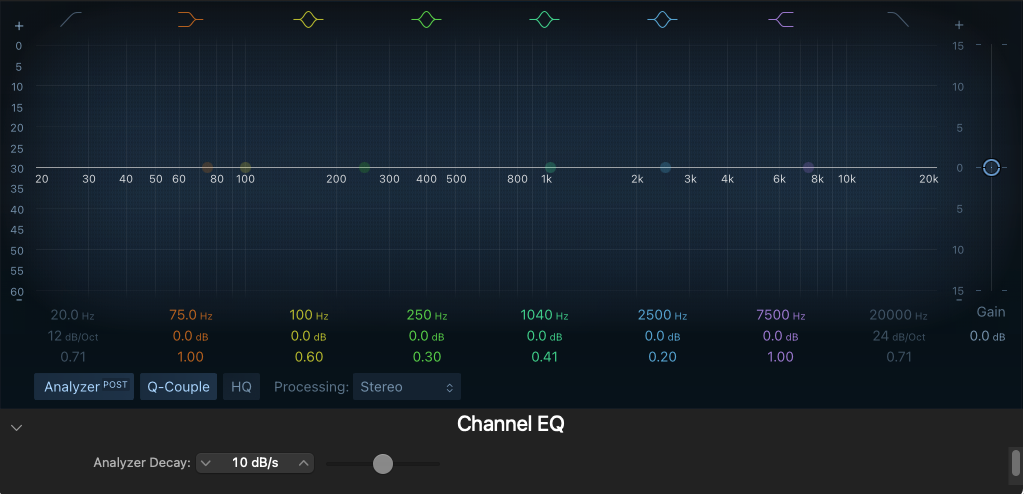

Analyzer Decay Time:

The drop-down arrow in the analyzer section allows you to adjust the analyzer's decay time. Customizing this setting provides control over the speed at which the analyzer responds to changes in audio.

Gain Slider (Right):

The gain slider on the right side of the interface serves as a master volume control for the entire EQ. It allows you to compensate for any significant cuts or boosts applied across the bands, ensuring a balanced output.

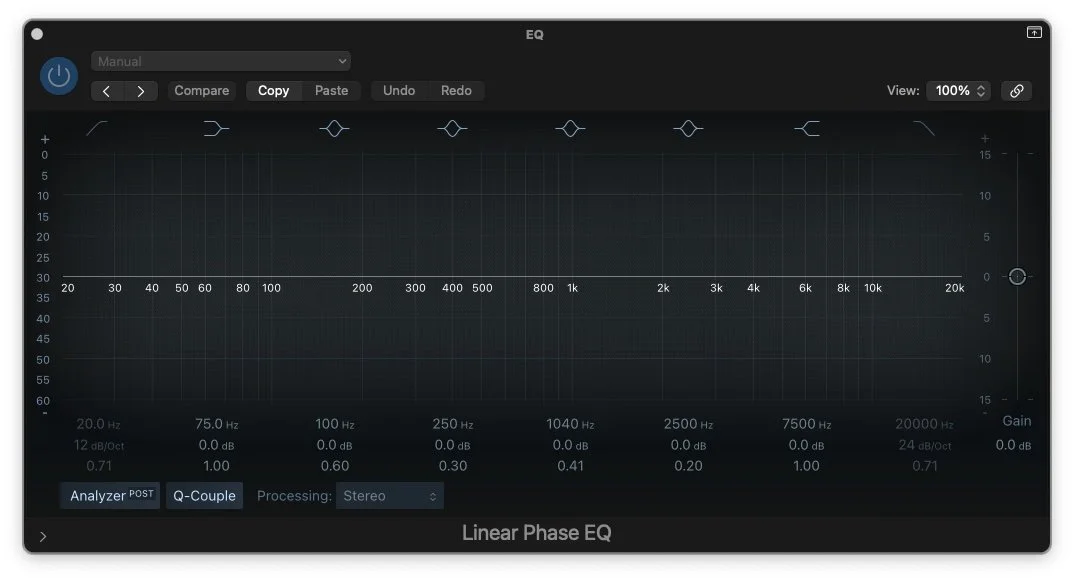

Linear Phase EQ:

Logic Pro also includes a Linear Phase EQ, which preserves the phase relationship of your audio during EQ adjustments. While this EQ functions similarly to the Channel EQ, it operates with added processing to maintain phase integrity. This is particularly useful for mastering tasks when preserving the mix's phase is crucial.

Conclusion:

Logic Pro's Channel EQ is a versatile and powerful tool that can handle a wide range of EQ tasks. Whether you need surgical precision or broad tonal shaping, the Channel EQ offers the tools you need to sculpt your sound. The inclusion of mid-side processing and linear phase options makes it even more versatile and valuable for mixing and mastering tasks.

If you found this tutorial helpful or have any questions, please share your thoughts in the comments section below. Don't forget to like and subscribe to stay updated with more Logic Pro tutorials and production insights. Until next time, happy mixing! If you’d like to check out the video that goes along with this blog post, check it right below!
